DIGITAL FLOW SENSOR
|
แบรนด์ :
|
ASK |
|
หมวดหมู่ :
|
MEASURING INSTRUMENT |
|
สต๊อก :
|
ติดต่อเจ้าหน้าที่
|
ราคา : เฉพาะสมาชิกเท่านั้น
สอบถามข้อมูลเพิ่มเติม :

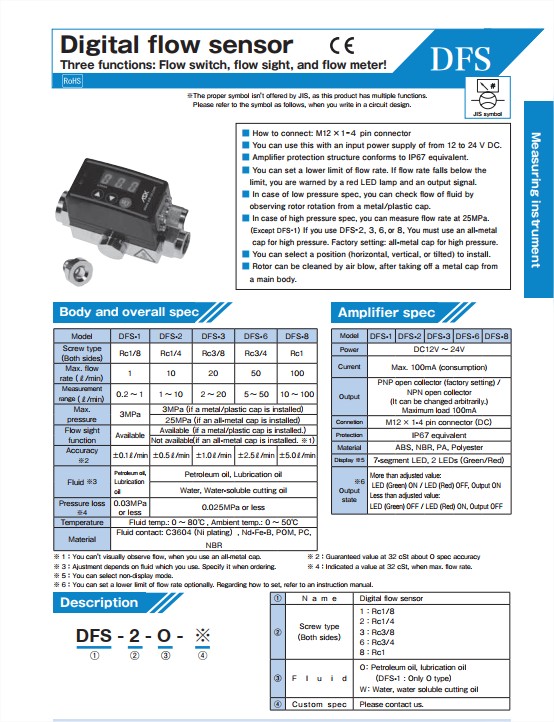

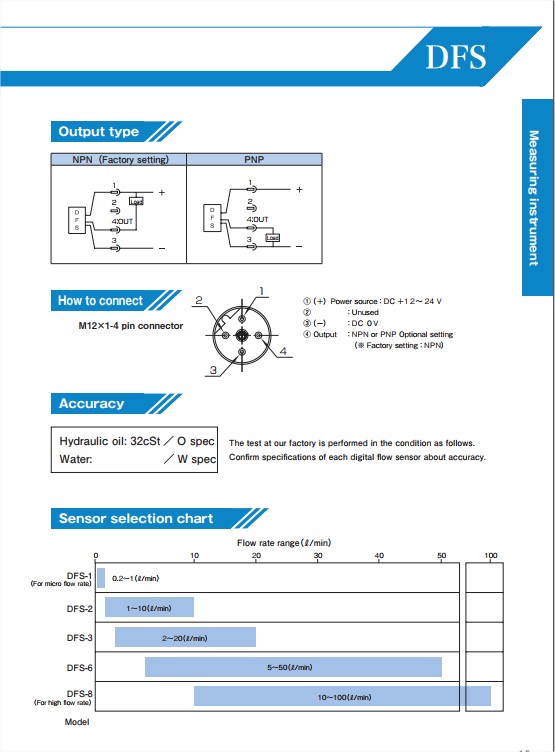

- How to connect: M12 ×１-４ pin connector
- You can use this with an input power supply of from 12 to 24 V DC.
- Amplifier protection structure conforms to IP67 equivalent.
- You can set a lower limit of flow rate. If flow rate falls below the limit, you are warned by a red LED lamp and an output signal.
- In case of low pressure spec, you can check flow of fluid by observing rotor rotation from a metal/plastic cap.
- In case of high pressure spec, you can measure flow rate at 25MPa.
（Except DFS-１）If you use DFS-２, ３, ６, or ８, You must use an all-metal cap for high pressure. Factory setting: all-metal cap for high pressure.
- You can select a position (horizontal, vertical, or tilted) to install.
- Rotor can be cleaned by air blow, after taking off a metal cap from a main body.
