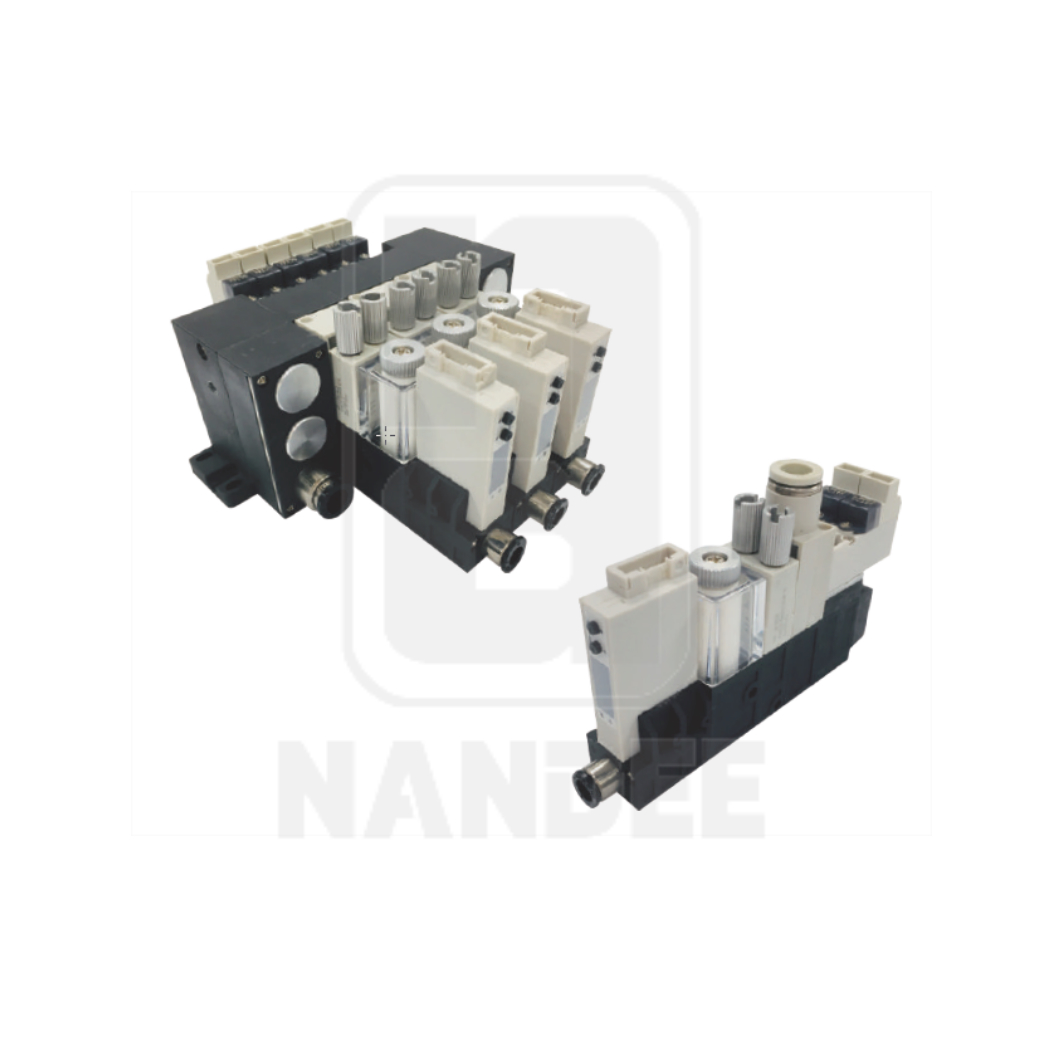

Wide variety of combinations can cope with variousneeds. External Vacuum Controller for Vacuum Pump Series is for available
For the pipe lead-out direction of concentrated piping of manifold-type, two types are available; front lead-out typeand rear lead-out type.
3 types for supply valv
- Doble solenoid type (Vacuum retention type, selectable for saving energy) - Normally closed type - Normally open type
The vacuum sensor is an LED-indicated digital sensor (V4). The basic specification : 2 switch output and analog output

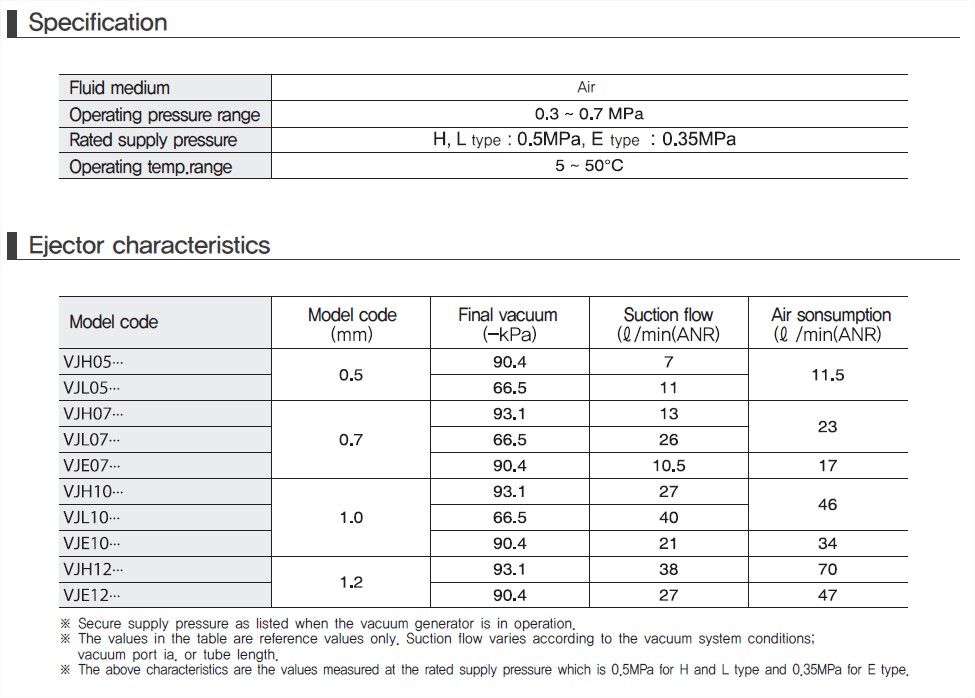

Standard nozzle bore: 05(ø0.5mm), 07(ø0.7mm), 10(ø10mm) and 12(ø1.2mm).
It is designed to adjust the breaking flow and breaking pressure at the same time to prevent scattering or locking of work piece which is difficult to control by only breaking flow adjustment.
By adding a relief function to the vacuum breaker circuit, the vacuum breakdown time has been shortened for the first time in the industry.
