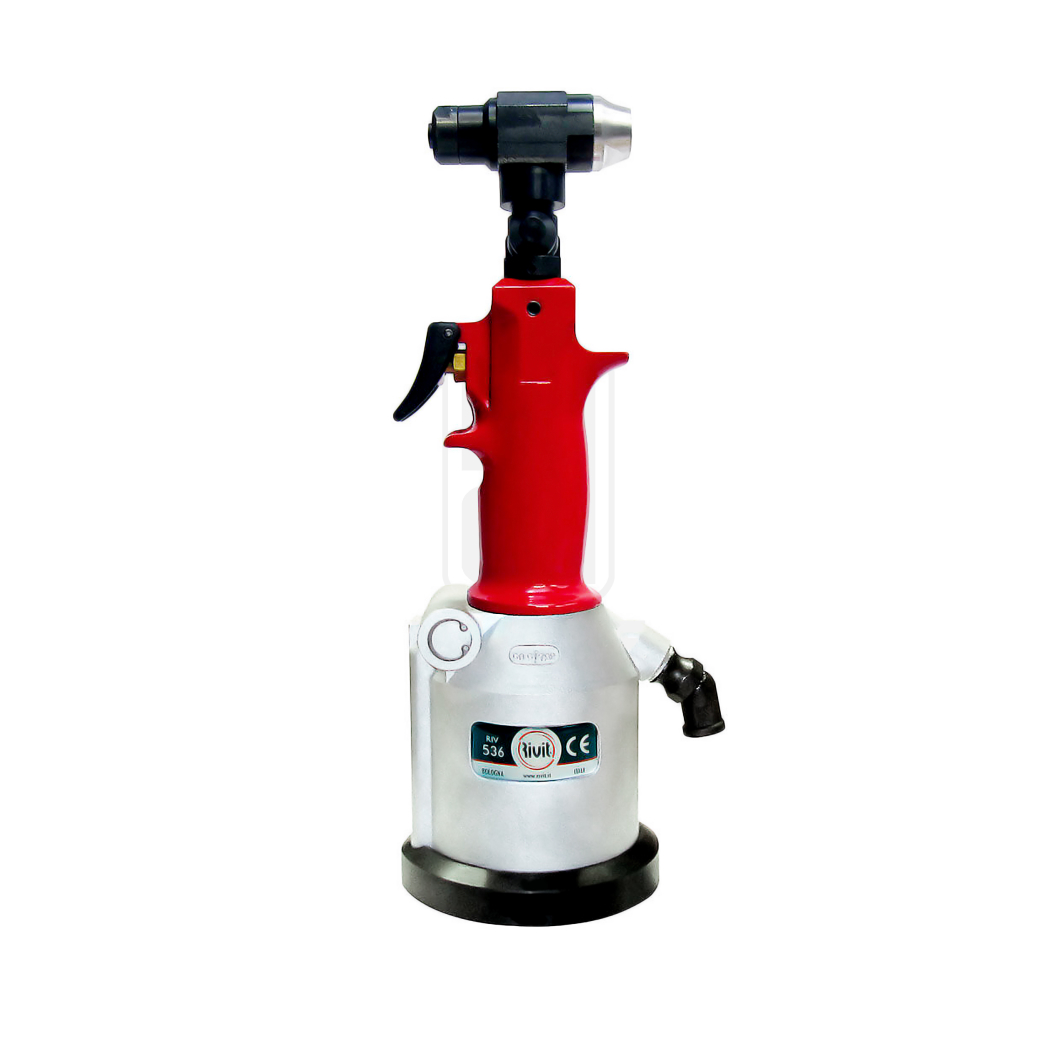

The hydropneumatic tool RIV536 is designed to place all alloy blind rivets up to d.4,8mm, with smooth rivet mandrel lower d.2,9 (not knurled).

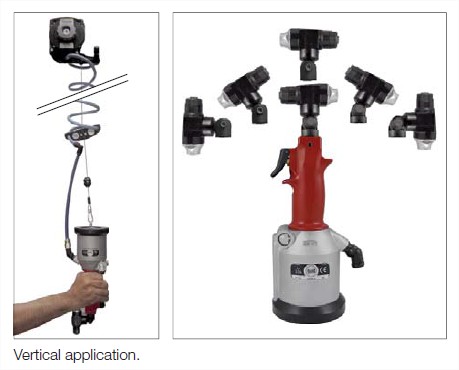

RIV536 is a hydropneumatic tool for blind rivets featuring an 360° rotating angular head which allows installing of blind rivets in difficult-to-reach and blind-sided parts.

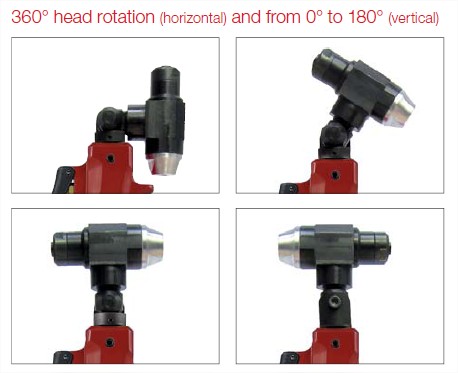

The head can rotate 360° and can be oriented in several positions from 0° to 180°, facilitating the installation of the rivet at any angle.

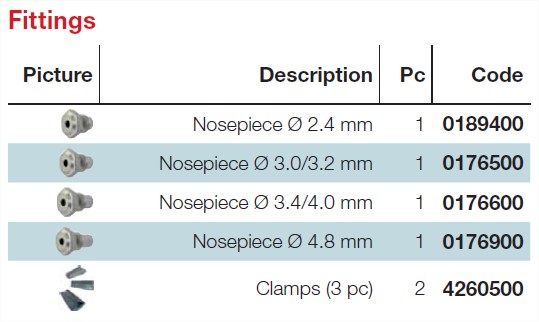

RIV536 is supplied in a case with four nosepieces for 2,4 – 3,0/3,2 – 3,4/4,0 – 4,8 nosepieces.
