The hydropneumatic tool RIV939 is designed for Rivsert female rivet nuts from M3 to M12 and Rivbolt male rivet nuts from M4 to M10.

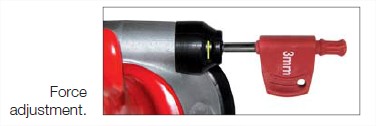

RIV939 to place rivet nut using force adjustment.
Automatic screwing by positioning the tie rod in the rivet nut, 1 PHASE rivet nut deformation and unscrewing.
In order to avoid the use of a special rod, a system has been designed to lodge an allen screw (hardness class 12.9), easy to find on the market and replace.
Advantages
Kit assembling without use of the key.
Does not require any regulation in change of thickness.
No damages to the screw if the operation of deformation of the rivet nut is repeated.
The tool is supplied in a plastic case without the frontal head kit.
Choose the correct one, according to the fastener to be placed, and order it separately.
